Easy safety rescue

500 EFS

fire escape sliding door

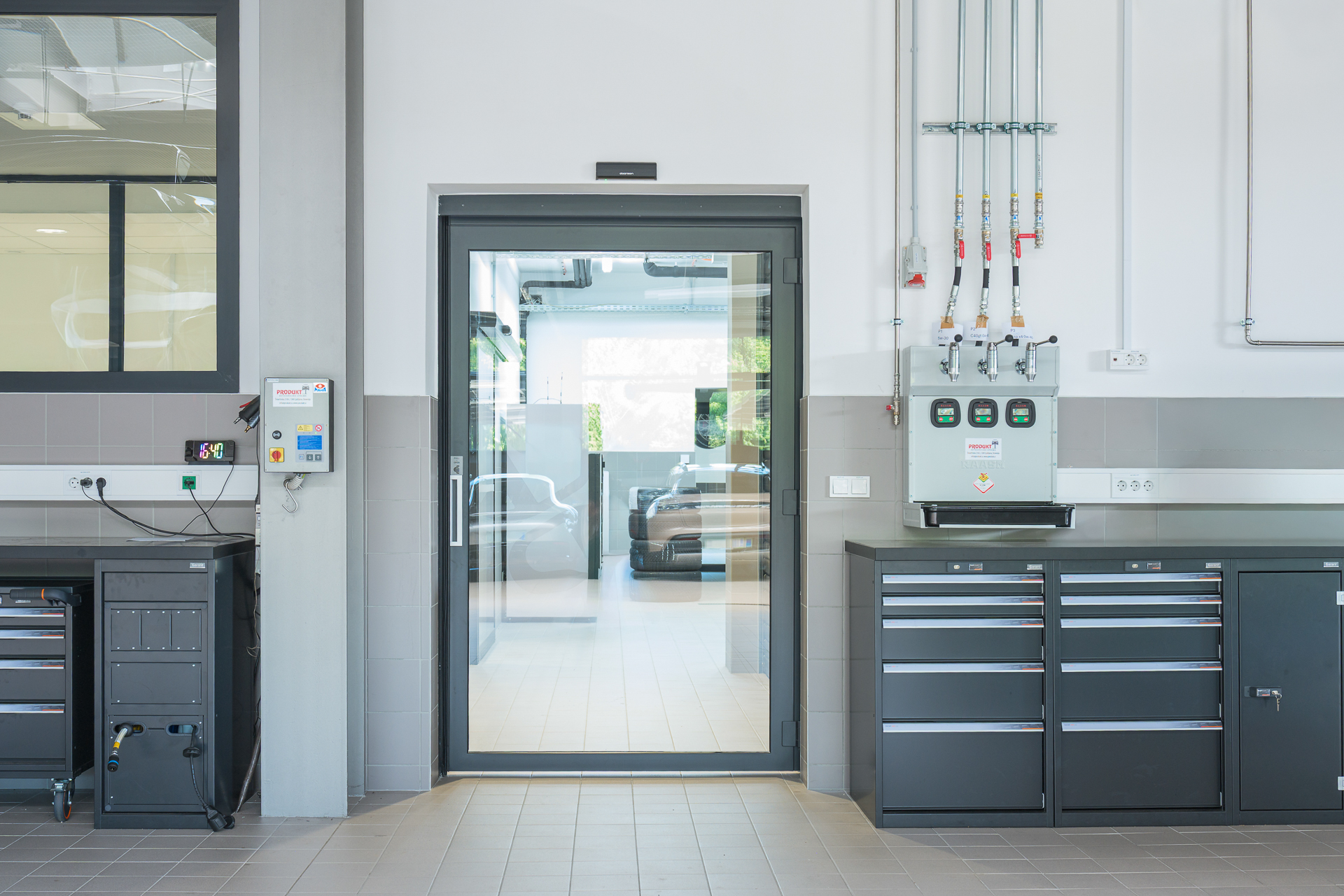

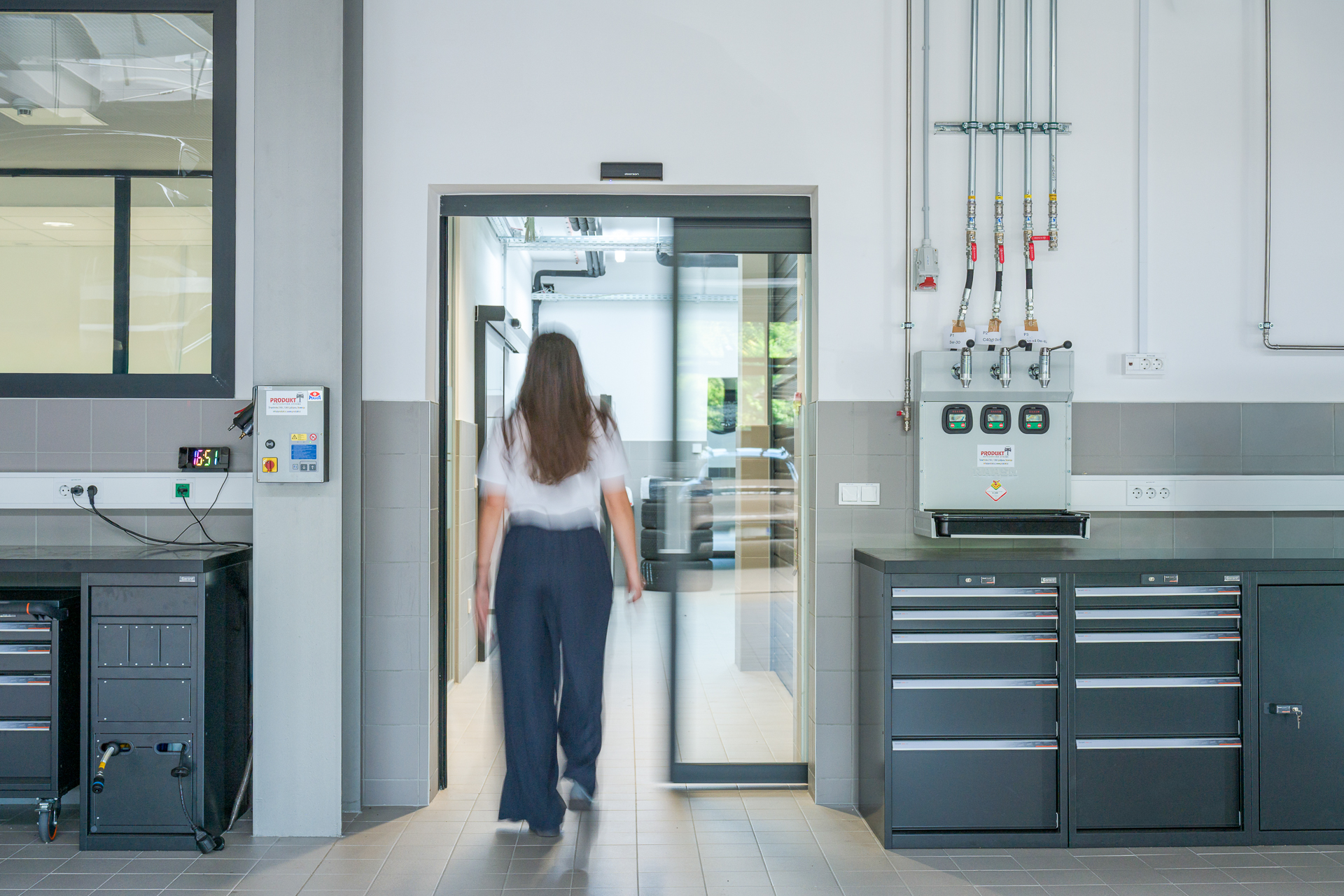

Escape fire sliding door 500 EFS functions as a standard automatic sliding door that is convenient for all working spaces. It provides a comfortable everyday transition in-out with fire-resistant ability, which divides the two fire sectors on ESCAPE routes with advanced escape and rescue possibilities. It is constructed for 30 or 60 minutes fire resistant fully expanded, from both sides of the door.

Technical data

Send inquiry

Downloads

BROCHURE 500 EFS ang

DRIVE HEIGHT

170 mm

DIMENSIONS

1 leaf: clear opening width 900 – 1400 mm
clear opening height 1900 – 2500 mm
2 leaves: clear opening width 1600 – 2500 mm
clear opening height 1900 – 2500 mm

Safe escape in case of fire

In case of an emergency, fire alarm or power failure, the mechanical spring system closes the door, which then, in a few seconds, transforms into a swing door. Safe evacuation is provided by swing opening and self-closes after that. The swing opening provides a safe rescue of people and goods out of the danger zone. In case of a fire expansion, the door creates a safe barrier that stops the flames and heat from spreading to the safe side.

500 EFS escape and rescue door opening

Escape with PUSH TO OPEN

ESCAPE

by pushing the leaf

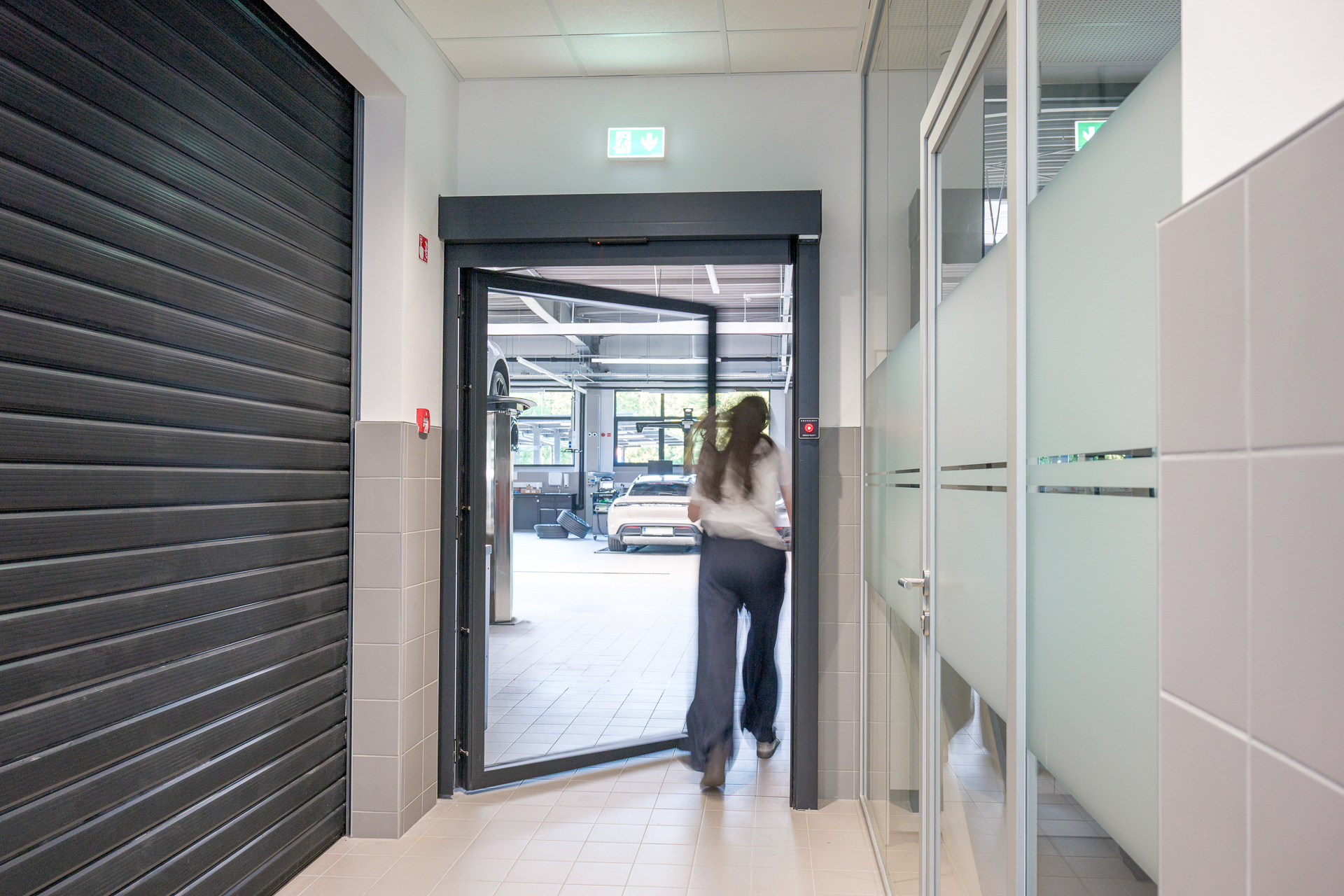

A swing opening is provided in the escape direction by pushing on

the door leaf.

Rescue with FLUSH PULL HANDLE

RESCUE

by pulling the handle

On the opposite side of the door, in the rescue direction, the 500 EFS

simply opens by pulling the door with a Flush handle.

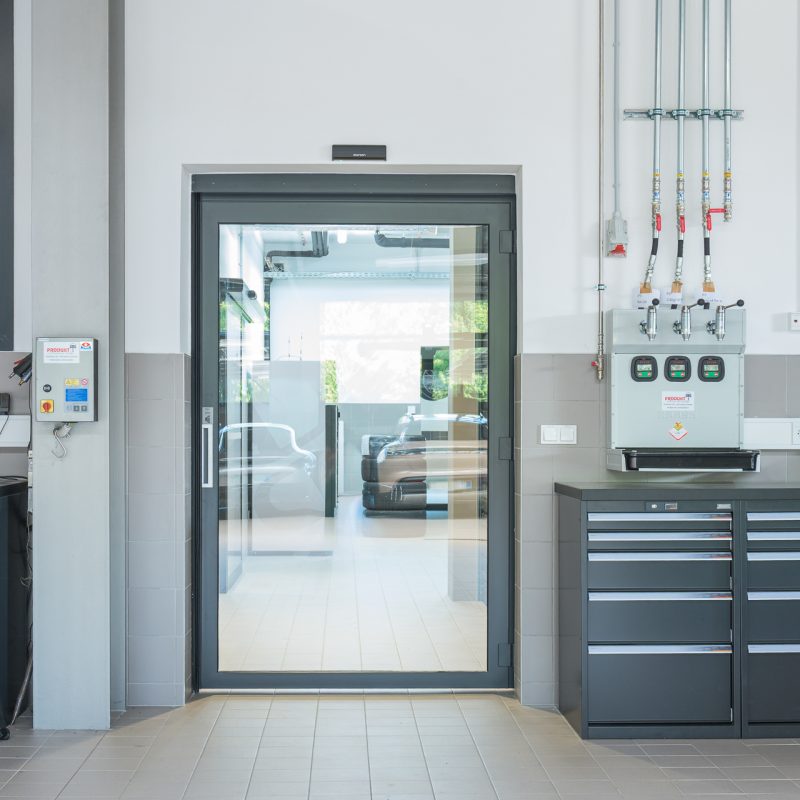

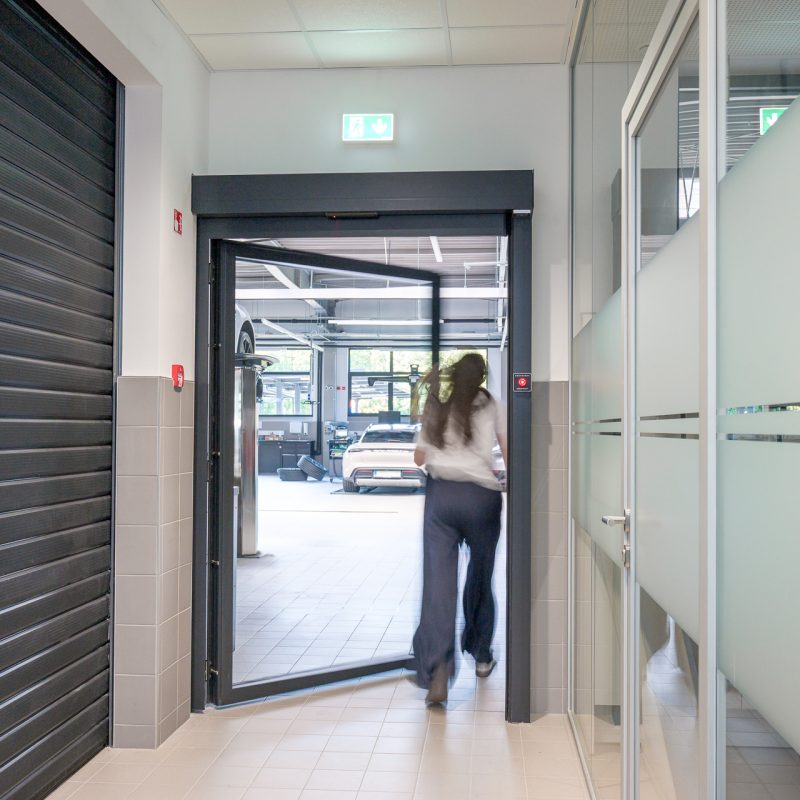

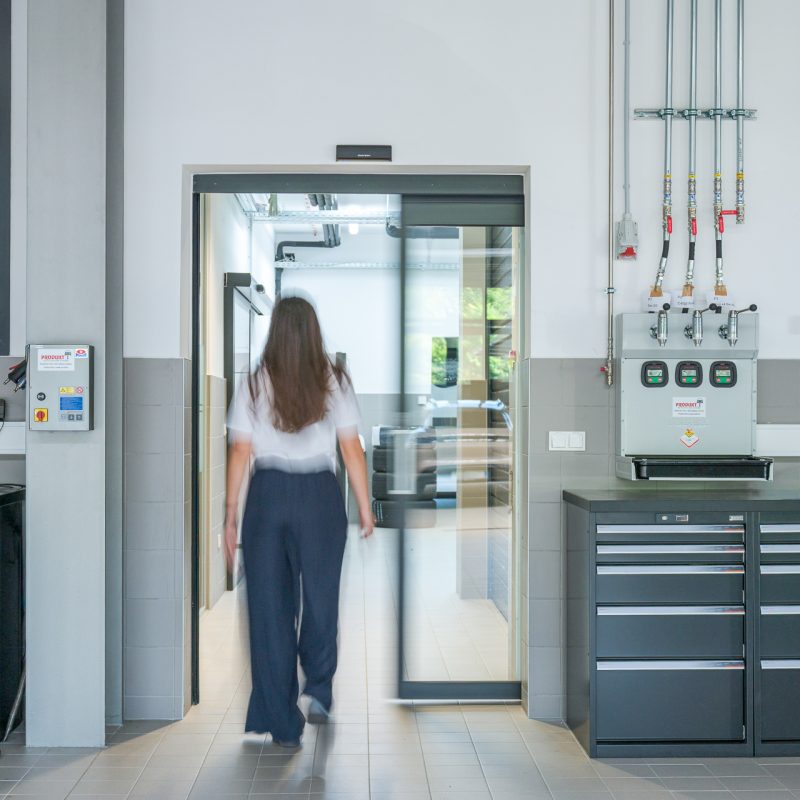

Reference projects

Customize your door

With the 17 cm drive, the system is furthermore equipped with a built-in sensor that provides automatic opening and safe closing. To increase the safe opening, side safety sensors are integrated.

100 %

certified

Explore specifics

Door installation

The door can be installed on the wall. Combine your system with a flexible, rigid or partition wall.

Leaf

Drive is assembled with door leaves made of wide range of profile systems.

Door leaf

EI30

The fire door leaf consists of fireproofed thermo broken steel profiles with fully insulating fire-resistant glass for 30 minutes. Smart choice for healthcare, business, public places, working spaces, etc.

VA THERM fireproofed isolated steel profiles, with
laminated fire safety glass:
15 mm

EI60

The fire door leaf consists of fireproofed thermo broken steel profiles with fully insulating fire-resistant glass for 60 minutes. Smart choice for healthcare, business, public places, working spaces, etc.

VA THERM fireproofed isolated steel profiles, with
laminated fire safety glass:
23 mm

Panel

The fire door leaf consists of fireproofed thermo broken steel profiles with fire-isolated steel panel for 30 or 60 minutes of fire resistance. Smart choice for healthcare, business, public places, working spaces, etc.

Fireproofed isolated steel panel
EI30: 26mm
EI60: 38mm

500EFS-fire-escape-sliding-door-hospital-sg-radiology-doorson

Panel solution

Escape & rescue

Escape & rescue door opening

Easy to use, safe to escape & simple to rescue

PUSH to open

for escape

Flush PULL handle

for rescue

Fire switch

Fire switch is a fire door functional display that presents mode of operation on the functional display.

Normal operation

Transforming operation

Swing opening escape direction

Swing opening opposite direction

Door opening

Reliable, safe & touchless access

Side safety sensors

For safe sliding door opening

Side safety sensors protect the opening path from both sides of the leaf. A direct beam detects the human body resulting in a smaller and more direct scanning area. It means less stopping when opening/closing the door and rapidly increases the level of safety.

Sensor

The security sensor ensures a hygienic and touchless door opening with the possibility of adjusting the detection zone. By motion and presence detection, it improves the everyday experience of using automatic sliding door.

Side safety sensors

For safe sliding door opening

Detection zone

Pedestrian safety

Mounting heights of up to 3 m. Detects people and objects in a range up to 2,5 m. Safety curtain protects pedestrians in and around the door close zone.

Sensor installation

Sensor is the key element to moving the door. The detection area activates the door to open, while the safety area provides pedestrian safety when the door is closing.

Suitable for different types of applications.

touchless

door opening

easy

to operate

Door switches

For the best user experience

Automatic sliding doors can be combined with different sets of operational switches. Our switches are multifunctional and provide many user made combinations.

Smartphone control

My Door Application

Control and maintain your automatic sliding door remotely with more functionalities for your business or home. You can easily access your door system anywhere and anytime.
